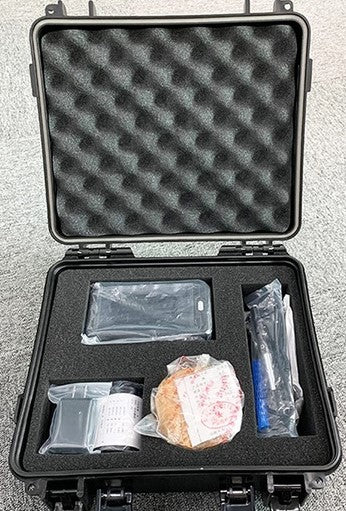

Water flow velocity measurement meter

The electromagnetic velocity/flow meter is portable instrument flow designed for the flow velocity/rate measurement, It’s professional for agricultural irrigation, hydrologic monitoring, rivers flow monitoring, municipal water.

The low-power design and full digital signal processing technology make measurement more stable and reliable. The range is wide and high accuracy. It’s widely apply to the measurement of flow velocity and rate for industry requires moving frequently such as agricultural irrigation, hydrology and water conservancy.

Main Features

No movable parts, no winding
Stable measurement, won't affected by water quality
Micro power can last 80 hours
No choked flow, no maintenance
Large capacity data storage space

Main Technical Parameters
Accuracy:±1.0%
Power supply: 1.5V*5 removable alkaline battery
Display: LCD big screen back light display
shows flow velocity, depth, flow rate and other measuring data.
Communication interface: RS485
Water level indication: water level is 5 digit, flow velocity is 5digit, flow rate
is 5 digit
Measurement range: flow velocity 0.01-10m/s (resolution ratio 5mm), flow
rate ≤1000m³/s, canal bottom width≤20m, canal deep≤20m
