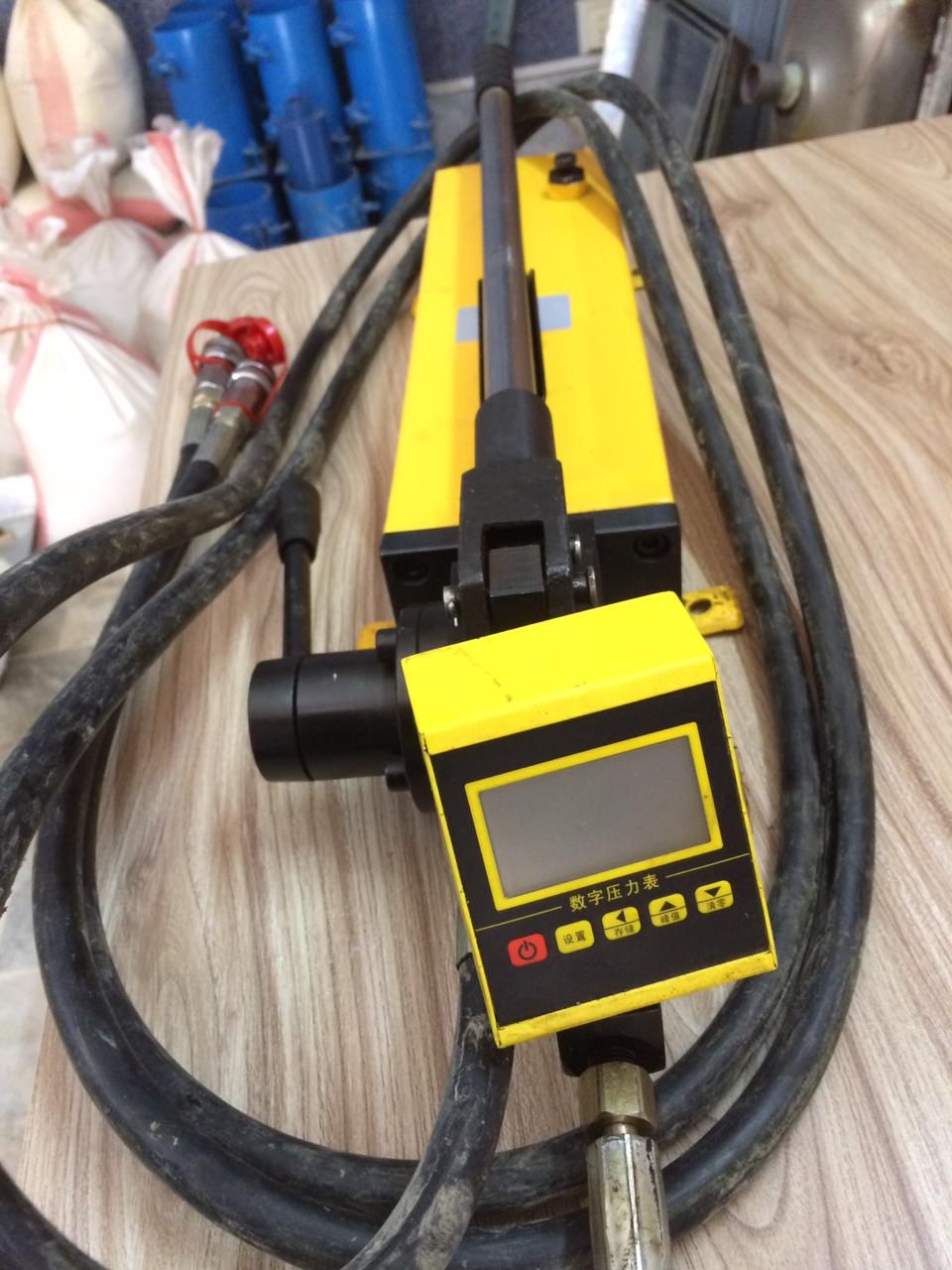

PULL-OUT TEST APPARATUS OF ANCHORAGE BODY

TBTML – Series pull out test apparatus is suitable for testing the anchorage force of Bolt, Steel
Bar, Expansion Bolt etc…

TECHNICAL PARAMETERS:

Model: 500kN (50T)
Cylinder Centre Hole: 60mm
Cylinder Stroke: 120mm
Test Range: 0-500kN
Cylinder Weight: 25KG
Anchor Size: ø6-40
Pull Rod: M39
Conversion Head: M6-36
Display: Digital
