PROCEQ Pundit PL-200 Ultrasonic plus velocity tester of concrete
PROCEQ Pundit PL-200 Ultrasonic plus velocity tester of concrete
The Pundit PL-200 continue the illustrious Pundit tradition that began in the 1970s. The first to use a new generation touchscreen display unit.
The Touchscreen unit can control conventional Ultrasonic Pulse Velocity Transducers as the PL-200 and the Pulse Echo Transducer.
The world known Pundit range offers users a reliable and accurate method for determining the sonic properties of materials.
The pulse velocity in a material depends on its density and its elastic properties. These in turn are related to the quality and the strength of the material.
Applications
Ultrasonic testing can be used for:
The homogeneity of a material
The presence of voids, cracks or other internal imperfections or defects
Changes in the concrete which may occur with time (i.e. due to the cement hydration) or damage from fire, frost or chemical attack
The strength or modulus of a material
The quality of the concrete in relation to specified standard requirements
Single sided thickness measurement
Poisson’s ratio and E modulus calculation
Materials
An essential tool for investigating a wide range of materials. Including Concrete, Ceramics and Refractories, Timber and many others/
Features
Housing specially designed to be used on-site in harsh environments
Screen with highest resolution and sharpest image available in the market allowing best possible analysis of the measured waveforms
Settings directly accessible on measuring screen
On board storage and review of waveforms
Automatic and manual triggering and user adjustable trigger threshold
Gate function on UPE results to focus on critical testing regions.
Modular concept: Expandable with all Proceq Pulse Velocity and Pulse Echo transducers, upcoming Pundit ultrasonic products will be directly compatible.
Time based data logging for short term monitoring

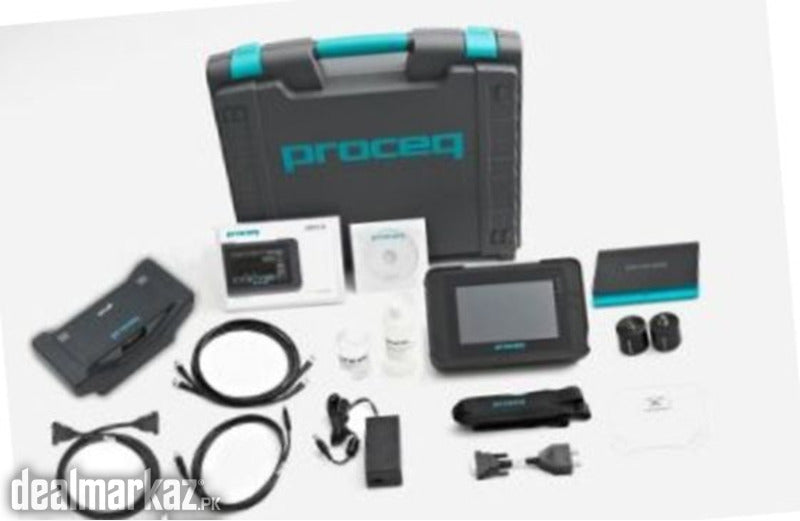

Pundit PL200 comes standard with:
Pundit Touchscreen
2 Transducers 54 kHz
2 BNC cables 1.5m, BNC Adapter Cable
Couplant
Calibration Rod
Battery Charger, USB cable
DVD w. Software, Documentation, Carrying Strap, Case
