Leeb Reboud Metal Hardness Tester

Rebound Portable Leeb Hardness Tester

Features

Largest screen Oled screen, it is the highest brightness display showing all functions and parameters, easy read and operate, also can save lots of energy.

Two hardness scale dual-display in the screen.

Measuring direction in 360° and add the auto measure direction to make test easy and precision.

Add four new hardness scales, HRA, HB for D impact device of alloy tool steel; HV for cast aluminum alloy

Add New user material function, to meet the need of user can test the special material

Test at any angle, even upside down.

Wide measuring range. It can measure the hardness of all metallic materials. Direct display of hardness scales HRB, HRC, HV, HB, HS, HL and three types of strength values immediately.

Seven impact devices are available for special application. Automatically identify the type of impact devices

Large capacity memory could store 600 groups (Relative to average times 32〜1 ) information including single measured value, mean value, testing data, impact direction, impact times, material and hardness scale etc.

Upper and lower limit can be preset. It will alarm automatically when the result value exceeding the limit.

Battery information indicates the rest capacity of the battery and the charge status.

User calibration function.

USB port with the PC humanity multi-functions data proceeding software.

Li rechargeable battery as the power source. Charge circuit integrated inside the instrument. Continuous working period of no less than 200 hours (EL off and no printing).

Auto power off to save energy.

Main Application

• Die cavity of molds
• Bearings and other parts
• Failure analysis of pressure vessel, steam generator and other equipment
• Heavy work piece
• The installed machinery and permanently assembled parts
• Testing surface of a small hollow space
• Material identification in the warehouse of metallic materials
Rapid testing in large range and multi-measuring areas for large-scale work piece

Technical Specification

Measuring range: (170-960) HLD, (17-68.5) HRC, (19-651) HB, (80-976) HV, (30-100) HS, (59-85) HRA, (13- 100) HRB

Measuring direction: 360°

Accuracy: +/-4 HLD

Hardness Scale: HL;HB,HRB,HRC,HRA,HV,HS

Display: 854*400, 5 Touch LCD screen

Data memory: 600 groups max. (relative to impact times 32-1)

Communication: USB 2.0

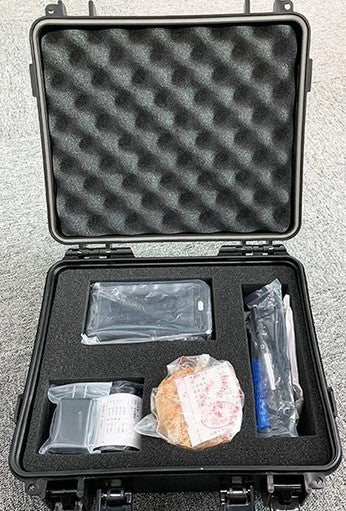

Accessories Included

1 x Main Display unit
1 x D Type impact device
1 x Standard Test Block
1 x cleaning brush
1 x small support ring
2 x Alkaline battery
1 x Manual Operation
1 x Calibration Certificate
1 x Carrying case
1 x Micro Bluetooth Wireless Printer
