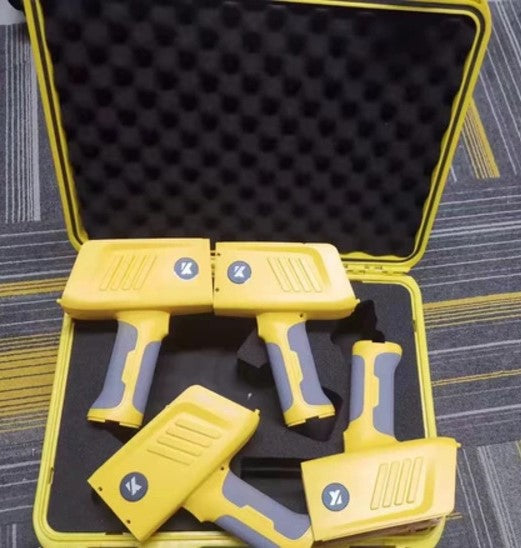

Handheld XRF Analyzer

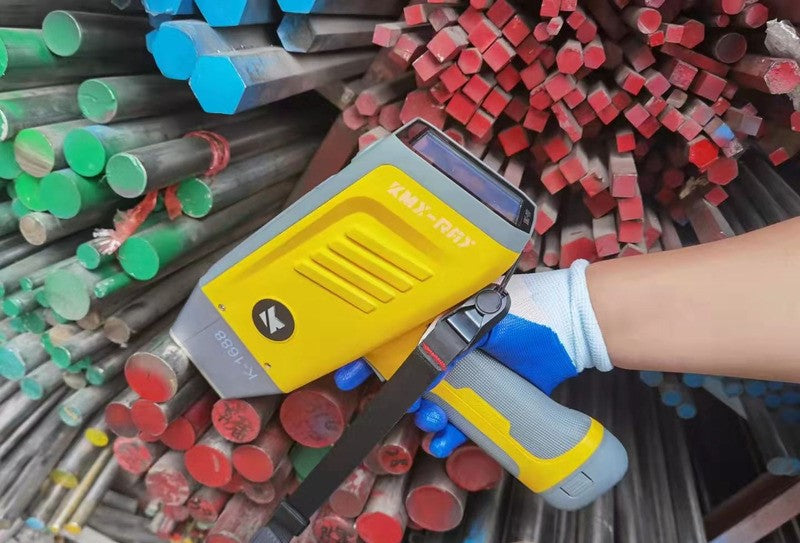

"KMX-RAY" Portable Handheld XRF Analyzer. This is the lightest, quickest, and most accurate spectrometer, with a weight of only 1.65kg (battery included). the features of the X-series, such as small size, fast response, and high accuracy, have been integrated into one device. It is specifically designed for
NTD and PMI users, and the detection of places that are unreachable, and welds. It has excellent analysis performance to low content Ti v.

It can analyze common alloys in one second or less. The system is built on the
Microsoft WINCE platform, which has better compatibility with the computer
platform in facilitating data communication. The users who want to use the device need only to know how to use a computer. KMS-Ray patented technology (mirror system design) is adopted in this device. The temporary files generated during system operation will be automatically deleted after the device restarts, and it can run smoothly as a new one for 10 years. One key system test, one step from startup to test, the test has never been so convenient.

SPECIFICATION

Weight : Device: 1.50kg, 1.65kg with battery.
Dimension: 250mm x 75mm x 270mm (L*W*H)
Excitation source: High-power high-performance X-ray microtube
Target: 5 available targets for ray tubes are: gold (Au), silver (Ag),
tungsten (W), tantalum (Ta), palladium (Pd)
Voltage: 35kV-50kV voltage (changeable)
Filter: A variety of selectable filters, automatically adjusted
according to different tested objects
Detector: High-resolution Si-Pin detector
Detector refrigeration temperature: Peltier effect semiconductor refrigeration system
Standard film: 316 external standard films/window protection cover
(internal plus version standard films available)
Power supply: 1 lithium battery (7.2v\6600mAh)
Processor: High-performance ARM pulse processor
Operating system: Windows CE6.0
Data transmission: Hotspot sharing via Bluetooth and Wifi
Standard mode: K-MAX Alloy Plus 6.0
Data processing: 32G Large Capacity Data Storage Card > 80,000 Sets of Data and spectrograms.
Display screen: High-resolution TFT industrial-grade colored high-definition touch screen, it is ergonomic, sturdy, dust-proof, and waterproof, clearly
visible under any light conditions
Outline design: The integrated designed body is sturdy, waterproof, dustproof,
antifreeze, shockproof, and can be used normally in harsh
environments
Safe operation: ”One key" detection, auto-lock, detection auto-stop functions. The X-ray
will automatically be turned off if there is no sample in front of the
detection window for 2 seconds. 3/2 of the shell of the device is covered
with a 6061 aluminum alloy frame design, with better X-ray blockage.
Element analysis: Mg, Al, Si, P, S, Ti, V, Cr, Mn, Fe, Co, Ni, Cu, zn, Hf, Ta, W, Hg,
Se, Au, Br, Pb, Bi, Zr, Nb, Mo, Ag, Cd, Sn, Sb, Re, Ir, Pt, Hg, Ru,
Rh, Pd, etc. Note: The light elements marked in red are for the plus
version SDD detector configuration, and the others are Si-Pin.
