Digital Surface Profile Gauge Surface Roughness Tester 0-6.5mm/0-6500u

This tester has the characteristics of high measurement accuracy, wide measurement range, simple operation, easy to carry, stable operation, etc.,

It can be widely used in the industries of shot blasting, sandblasting, printing, spraying anticorrosion, and mechanical processing, including the detections of flat surface, inclined surface,cylindrical surface small holes, grooves, axles and other metal and non-metal flat and uneven surfaces.

Function
1.Buttons:on/off ,zero.mm/inch,data hold,max/min

2.Operating temperature :-10-40°C

3.Humidity:≤80% RH

4.Battery :3.7V lithium battery(Rechargeable battery),Charging /communication interface :USB Type-C

5.Directly measure the maximum,minimum value and range

6.Analog pointer

7.Absolute measurements

8.Data output

Button function
①On/off key :Press this button to start or shut down the machine
②MM/IN key:short press to convert metric to inch units,long press to change the direction of measurements
③Hold key:short press for data retention,long press to set the current analog pointer to zero
④ZERO/MAX/MIN key:short press to set the LCD data to Zero ,long press to start or exit the maximum value ,mininum value ,range measurement etc.
Technical Parameter
Model number:GS5337

Measuring range :0-6.5mm/0-6500um

Accuracy:±3um

Resolution:1um

Power supply mode:3.7V lithium battery

Charging/communication interface :USB Type-C,RS232 Interface signal

Waterproof :IP54

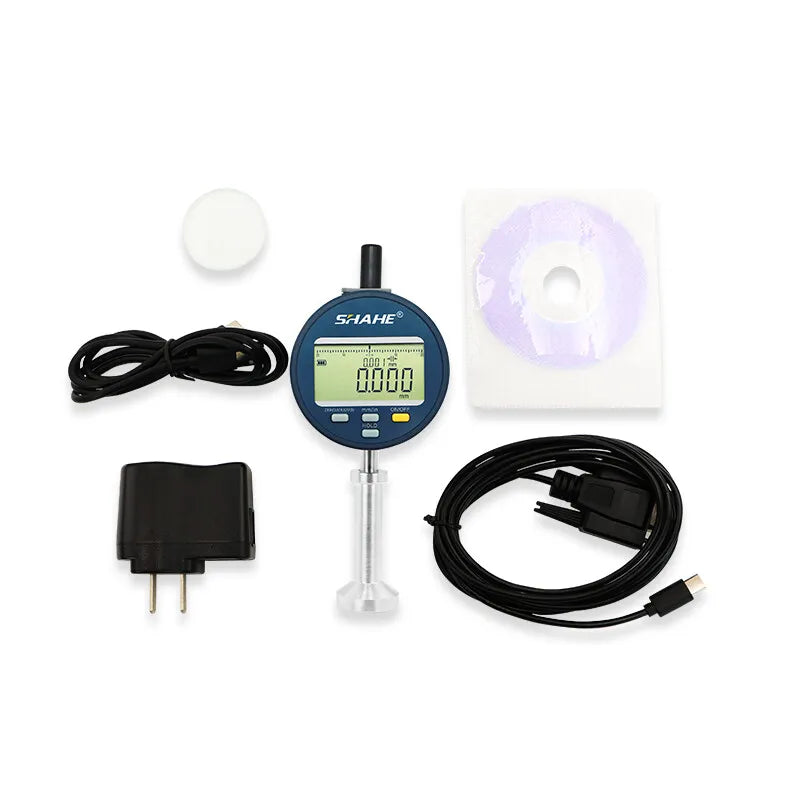

Accessories Included

main unit*1

Glass standard block*1

Charging kit*1

PC data cable *1 CD*1

Carrying Case*1

Operation Manual*1
