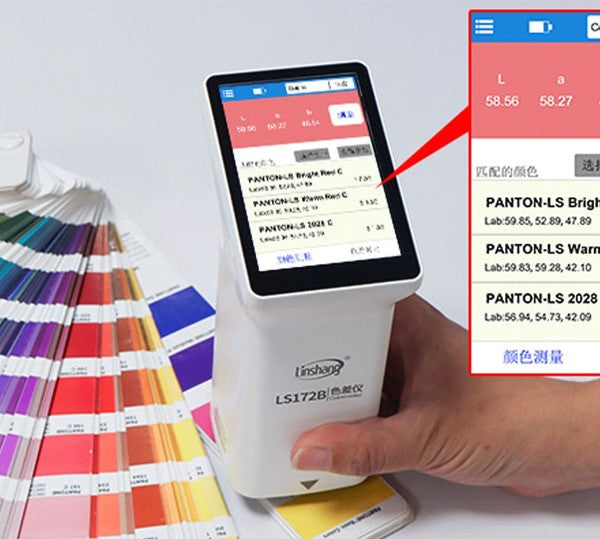

Digital Colorimeter Color Difference Meter Color Analyzer

Handheld Colorimeter smart touch screen Color Difference Tester for color measurement of paint ink and plastic

Introduction

Handheld multi functional colorimeter designed with a 45°/0° optical geometric structure.

It uses a 3.5-inch IPS color screen and a capacitive touch screen to provide an excellent operating experience.

The color analyzer integrates multiple color charts, which can quickly match the three closest color codes.

At the same time, it has a color difference comparison function, support multiple standard color addition methods, color difference thresholds can be set, color difference formulas can be flexibly selected. QC testing can be achieved.

Features

Touch screen control, perfect viewing angle. The instrument uses a 3.5-inch IPS color capacitive touch screen, no button settings are required; the screen is tilted at 20 degrees and has a perfect viewing angle, which has a good user experience and human-computer interaction interface.

Portable color analyzer, easy to carry Small and portable, easy to store and carry; stable body, ergonomic design, more stable measurement data.

Refusing to be burdensome and simple to choose Built-in multiple electronic color charts, quickly matching the closest 3 color codes, the accuracy rate is as high as 90%.

Color measurement and color difference comparison Reject complex operations and make the measurement simpler. The color difference meter can be used in 5 seconds to get started. Color measurement can be achieved by touching the screen button or pressing the power button. The color values can be quickly measured in 1 second.

Two clicks can complete the color difference comparison, turn on the QC testing function, batch testing can be performed. The color difference threshold can be set to quickly achieve color quality control. And provide the color deviation indicator of Lab values, making color adjustment easier and more convenient.

Seven color spaces and six color difference formulas. The color meter has a variety of color spaces such as Lab\RGB\CMYK and a variety of color difference formulas to choose from, matching the color measurement needs of various industries.

Large storage space. The instrument has built-in large storage space, which can store 1000 colors and 1000 color difference comparison records respectively.

Compensation optical path technology. The color difference meter has a built-in compensation optical path with stable values and allows long-period calibration.

Whiteboard calibration, simple operation. The bottom cap integrates a calibration whiteboard, so there is no need to worry about losing it. No need for tedious operations.

Locating plate makes color measurement more accurate. The color difference meter is equipped with a measurement locating plate to meet the needs of precise alignment and make the measurement more accurate.

Energy saving, low power consumption. Built-in lithium battery, can be used 10,000 times continuously under full charge. The default auto off time can be set.

Free Color Charts no need to buy expensive color cards, after measuring color save it to the instrument or Mobile App any time & any where

Specification
Data Transmission : USB, Bluetooth
Illumination geometry D/8 Specular Component include (SCI)
Weight: 245 Gram
Illumination Light source: Full Spectrum LED Light source
Measuring aperture: 8 mm
Measurement condition: Light source D65, field of view 10 Degree
Measuring Time : About 1 second
Color space: CIE Lab, Luv, LCh, Yxy, CMYK, RGB, Hex
Repeatability: Standard deviation Ǣ ab is within 0.03 measurement condition the average value 30 measurement on the whiteboard at an interval of 3s after calibration.
Power supply: Built in Rechargeable Lithium Battery 3.7V @ 4000mAh, can measure 10,000 times contentiously under full charge
Charging Port: USB (Type-C)
Operating Temperature: -0 Deg C to + 50 Deg. C
